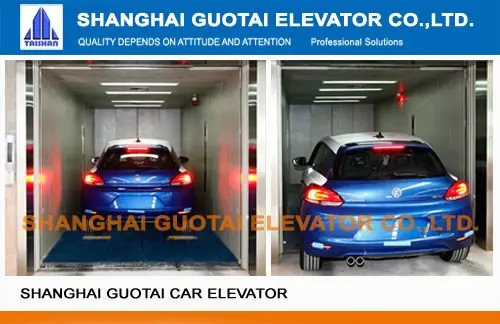

Car elevator (with driver on board)

FOB Reference Price:Get Latest Price
US $10,000-15,000 / Pieces | 1 Piece/Pieces . (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
TAISHAN
Model Number:
TQY3200/0.5-JXW
Usage:
Car Elevators
Elevator Type:
Goods Elevators
Certification:
ISO9001~2000,CE,GOST,JAB
Load:
3200kg
Car decoration:
stainless steel hairline finish/stainless steel mirror/spray paint
Color:
customized
Control method:
XHW or JXW
Car elevator:
Hydraulic car elevator
Type:
Elevators
Drive Type:
AC, Hydraulic, Screw
Supply Ability
Supply Ability:
80 Piece/Pieces per Week .
Packaging & Delivery
Packaging Details
Car elevator packing:Fumigated Wooden Case or Fumigation-free Plywood Case
Port
Shanghai
Lead Time :
1~3 months

Car Elevator


Type:Hydraulic car elevator
Guotai elevator is widely regarded as one of the China’s leading specialist suppliers of passenger (the driver) carrying vehicle elevators for motorcycles, cars, vans and other commercial vehicles. We offer both standard and bespoke solutions to match the individual requirements of your project.



Making the correct selections of size, capacity, speed, power system and door arrangement for vehicle elevators for cars and vans can be challenging - we give free expert advice from the outset. Good advice at an early stage can prevent costly mistakes which could be extremely difficult and expensive to put right at a later date.

Features and benefits
- Safety gear to lift car where applicable
- Safety rupture valve to hydraulic system
- Overload system with indication
- Heavy duty automatic power operated doors
- Perforated non-slip steel flooring
- Faster speeds for long travel heights
- Ventilation fans within elevator car
- Different types of door opening are available
- Fire rated landing entrances (optional extra)

Planning

  Car elevator

Type number

Speed

Load

Internal car

size(mm)

Internal shaft

size(mm)

Door size

(mm)

Door Opening

(m/s)

KG

Width

Depth

Width

Depth

Width

Height

4/6 panels, centrally by parting

TQY2600/0.3-JXW

0.3

2600

2300

5500

3700

6000

2300

2100

TQY3200/0.3-JXW

0.3

3200

2500

6000

3950

6500

2500

2100

TQY5000/0.3-JXW

0.3

5000

2700

7000

4250

7500

2700

2400

TQY2600/0.5-JXW

0.5

2600

2300

5500

3700

6000

2300

2100

TQY3200/0.5-JXW

0.5

3200

2500

6000

3950

6500

2500

2100

TQY5000/0.5-JXW

0.5

5000

2700

7000

4250

7500

2700

2400

Notes: The parameters table above just shows some of our products. More options and customized types are available at our Production and R&D department

car

CARBIN

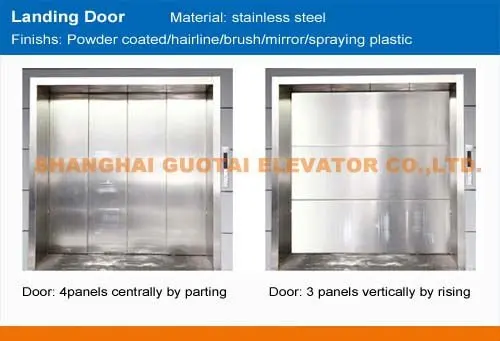

door

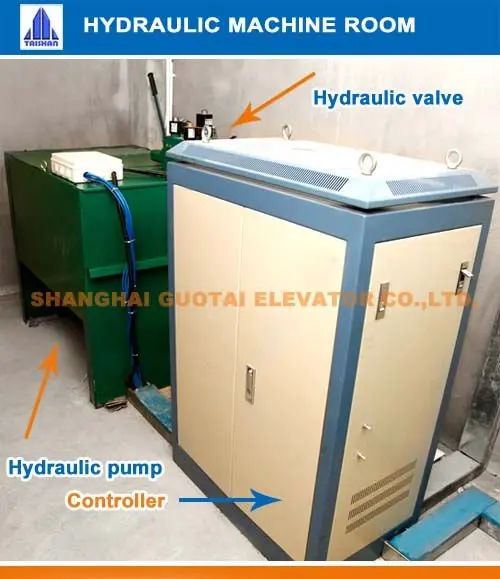

machine-room



Notes:We also offer traction car elevators to meet different individual requirements
