GUOTAI Car elevator

FOB Reference Price:Get Latest Price
US $11,000-35,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
TAISHAN
Model Number:
TQY/TQJ
Usage:
Car Elevators
Elevator Type:
Goods Elevators
Drive:
Traction machine/Hydraulic
Load:
2500-5000kg
Speed:
0.25~0.5M/s
Cabin decoration:
painted steel/stainless steel
Color:
customized
Control method:
collective selective
Certification:
ISO9001~2000,CE,GOST,JAB
Drive system:
VVVF or Hydraulic
Type:
Elevators
Drive Type:
AC, Hydraulic, Screw, Traction machine
Supply Ability
Supply Ability:
50 Set/Sets per Day
Packaging & Delivery
Packaging Details
Car elevator packing: Fumigation-free Plywood Case.
Port
Shanghai
Lead Time :
Shipped in 45 days after payment

Car Elevator



Type:Traction machine / Hydraulic

LINE1

Guotai elevator is widely regarded as one of the China’s leading specialist suppliers of passenger (the driver) carrying vehicle elevators for motorcycles, cars, vans and other commercial vehicles. We offer both standard and bespoke solutions to match the individual requirements of your project.
Making the correct selections of size, capacity, speed, power system and door arrangement for vehicle elevators for cars and vans can be challenging - we give free expert advice from the outset. Good advice at an early stage can prevent costly mistakes which could be extremely difficult and expensive to put right at a later date.

------------------------------------------------------------------------------------------------------------------------------------------------------------------

Features and benefits

-Safety gear to lift car where applicable
-Safety rupture valve to hydraulic system
-Overload system with indication
-Heavy duty automatic power operated doors
-Perforated non-slip steel flooring
-Faster speeds for long travel heights
-Ventilation fans within elevator car

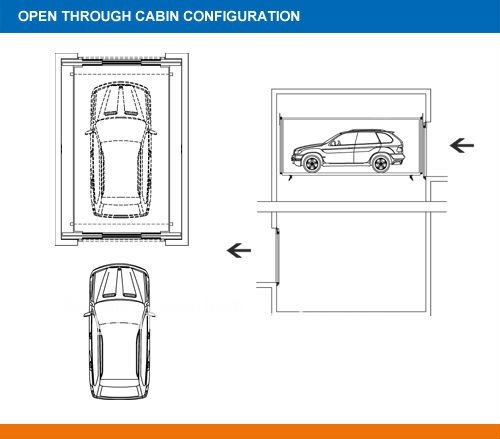

-Different types of door opening are available
-Fire rated landing entrances (optional extra)

LINE1

  Hydraulic Drive-TQY

Load

Speed

Car Size

Door Size

Shaft Size

Pit

Overhead

Machine-Room

Kg

M/s

mm

mm

mm

mm

mm

mm

W*D*H

W*H

W*D

W*D*H

2500

0.3

2400*5600*2200

2400*2200

4000*6200

1500

≥3800

1500

6200

2000

3000

0.3

2500*6000*2200

2500*2200

4200*6600

1500

≥4000

6600

5000

0.3

2700*6500*2200

2700*2200

4500*7100

1500

≥4000

7100



  Traction Drive-TQJ

Load

Speed

Car Size

Door Size

Shaft Size

Pit

Overhead

Machine-Room

Kg

M/s

mm

mm

mm

mm

mm

mm

W*D*H

W*H

W*D

W*D*H

2500

0.5

2400*5600*2200

2400*2200

4000*6200

1500

≥4500

4000*6200*2500

3000

0.5

2500*6000*2200

2500*2200

4200*6600

1500

≥4500

4200*6600*2500

5000

0.25-0.5

2700*6500*2200

2700*2200

4500*7100

1500

≥4500

4500*7100*2500
