Quick Details

  • Type: Elevators
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: TAISHAN
  • Model Number: TQY2600/0.3-JXW
  • Usage: Car Elevators
  • Drive Type: AC, Hydraulic, Screw
  • Elevator Type: Goods Elevators
  • Certification: ISO9001~2000,CE,GOST,JAB
  • Load: 5000kg
  • Car decoration: stainless steel hairline finish/stainless steel mirror/spray paint
  • Color: customized
  • Control method: XHW or JXW
  • Parking car elevator: hydraulic car elevator

Packaging & Delivery

Packaging Details Parking Car elevator packing: Fumigation-free Plywood Case
Delivery Time 1~2 months

Specifications

Parking Car elevator
1.Load:2600~5000KG Speed:0.25~0.5M/s
2.Power units are imported from Europe
3.Low noise and save energy

Parking Car Elevator

Type:Hydraulic car elevator
Guotai elevator is widely regarded as one of the China’s leading specialist suppliers of passenger (the driver) carrying vehicle elevators for motorcycles, cars, vans and other commercial vehicles. We offer both standard and bespoke solutions to match the individual requirements of your project.



Making the correct selections of size, capacity, speed, power system and door arrangement for vehicle elevators for cars and vans can be challenging - we give free expert advice from the outset. Good advice at an early stage can prevent costly mistakes which could be extremely difficult and expensive to put right at a later date.

Features and benefits
- Safety gear to lift car where applicable
- Safety rupture valve to hydraulic system
- Overload system with indication
- Heavy duty automatic power operated doors
- Perforated non-slip steel flooring
- Faster speeds for long travel heights
- Ventilation fans within elevator car
- Different types of door opening are available
- Fire rated landing entrances (optional extra)
Parameters

Type number

Speed

Rated Load

Internal car size

(mm)

Internal

shaft size(mm)

Door size(mm)

Door

Opening

(m/s)

KG

Width

Depth

Width

Depth

Width

Height

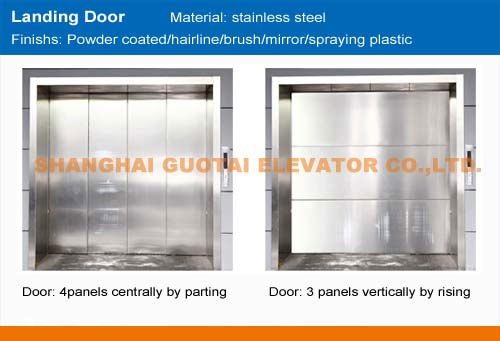

4/6 panels, centrally by parting

TQY2600/0.3-JXW

0.3

2600

2300

5500

3700

6000

2300

2100

TQY3200/0.3-JXW

0.3

3200

2500

6000

3950

6500

2500

2100

TQY5000/0.3-JXW

0.3

5000

2700

7000

4250

7500

2700

2400

TQY2600/0.5-JXW

0.5

2600

2300

5500

3700

6000

2300

2100

TQY3200/0.5-JXW

0.5

3200

2500

6000

3950

6500

2500

2100

TQY5000/0.5-JXW

0.5

5000

2700

7000

4250

7500

2700

2400



Notes: The parameters table above just shows some of our products. More options and customized types are available at our Production and R&D department.







Notes:We also offer traction car elevators to meet different individual requirements





We offer a wide range of different types of hydraulic elevators, including passenger elevator, cargo elevator, car elevator, home elevator, etc. Please visit our websit on 'Alibaba' to get more details about our hydraulic elevators.
